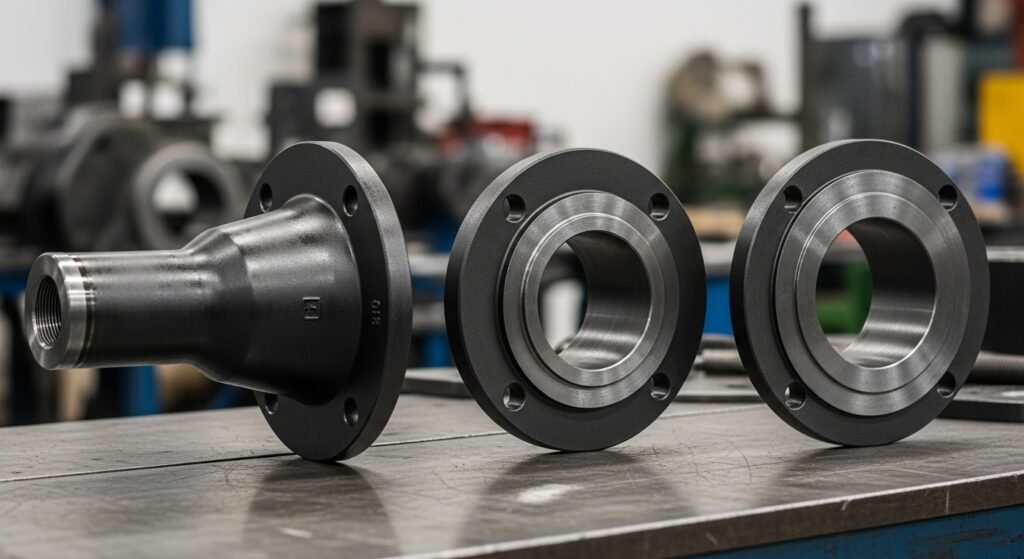

ANSI B16.5 Class 150 Flanges are some of the most widely used piping components in the world, providing standardized connections for everything from industrial process plants to commercial building services. The “ANSI B16.5″ designation refers to the American National Standard that governs the dimensions, materials, and pressure-temperature ratings for pipe flanges and flanged fittings from NPS ½” to 24″ . The “Class 150” designation, often written as 150#, indicates a specific pressure-temperature rating that is suitable for a broad range of low to medium-pressure applications.
Understanding these flanges is critical for engineers, designers, and procurement specialists to ensure system safety, integrity, and compatibility. This comprehensive guide will explore the different types of Class 150 flanges, their key dimensions, pressure capabilities, and material specifications, serving as an essential reference for your piping projects.
Table of Contents
Understanding Pressure Rating: What Does Class 150 Mean?
A common misconception is that a Class 150 flange is rated for 150 PSI at all temperatures. In reality, the pressure rating of a flange is dependent on the temperature of the service environment.
The “150” in Class 150 represents the maximum pressure the flange can withstand at a specific reference temperature. For example, a Class 150 flange can endure a maximum operating pressure of 150 psi at 100°F (approximately 38°C). As the service temperature increases, the maximum allowable pressure decreases. For instance, at a higher temperature of 400°F, the same Class 150 flange might only be rated for around 115 psi, depending on the material. This relationship underscores the importance of considering both pressure and temperature when selecting a flange.
Types of ANSI B16.5 Class 150 Flanges
The ANSI B16.5 standard covers several types of flanges, each designed for a specific purpose and method of installation.
Table: Common Types of ANSI B16.5 Class 150 Flanges
| Flange Type | Description | Key Features & Applications |
|---|---|---|
| Weld Neck (WN) | Features a long tapered hub that is butt-welded to the pipe. | Ideal for high-stress applications, high temperatures, and repeated bending. The smooth transition from flange to pipe reduces stress concentration. |
| Slip-On (SO) | Slides over the pipe and is secured with two fillet welds. | Easier to align than weld neck flanges and lower in cost. Suitable for low-pressure applications and where space is not a constraint. |
| Blind (BL) | A solid disk used to blind off or isolate a section of piping. | Used for future expansion, pressure vessel manways, or simply to close the end of a piping system. |
| Socket Weld (SW) | The pipe is inserted into a socket in the flange and welded around the hub. | Provides good flow characteristics and is stronger than slip-on flanges. Ideal for small-diameter, high-pressure piping. |
| Threaded (THD) | Features a female NPT thread and screws onto a male-threaded pipe. | Used where welding is not permissible, such as in explosive environments. Suitable for low-pressure, non-critical applications. |
| Lap Joint (LJ) | Used with a stub end, which is welded to the pipe, allowing the flange to rotate freely. | Excellent for systems requiring frequent disassembly or for aligning bolt holes. The flange itself is not welded. |
ANSI B16.5 Class 150 Flange Dimensions
The primary purpose of the ANSI B16.5 standard is to ensure dimensional uniformity, allowing flanges from different manufacturers to mate correctly. The key dimensions for Class 150 flanges are standardized from NPS ½” to 24″.
Table: ANSI B16.5 Class 150 Flange Dimensions (Select Sizes)
| Nominal Pipe Size (NPS) | Outside Diameter (O) | Flange Thickness (T) | Bolt Circle Diameter | Number of Bolts | Bolt Hole Diameter |
|---|---|---|---|---|---|
| 1/2″ | 3.50 inches | 0.38 inches | 2.38 inches | 4 | 0.62 inches |
| 1″ | 4.25 inches | 0.50 inches | 3.12 inches | 4 | 0.62 inches |
| 2″ | 6.00 inches | 0.69 inches | 4.75 inches | 4 | 0.75 inches |
| 4″ | 9.00 inches | 0.88 inches | 7.50 inches | 8 | 0.75 inches |
| 8″ | 13.50 inches | 1.06 inches | 11.75 inches | 8 | 0.88 inches |
| 12″ | 19.00 inches | 1.19 inches | 17.00 inches | 12 | 1.00 inches |
| 16″ | 23.50 inches | 1.38 inches | 21.25 inches | 16 | 1.12 inches |
| 24″ | 32.00 inches | 1.81 inches | 29.50 inches | 20 | 1.38 inches |
Key Dimensional Terminology:
- Outside Diameter (O): The overall diameter of the flange.
- Flange Thickness (T): The thickness of the flange facing.
- Bolt Circle Diameter: The diameter of the circle through the centers of the bolt holes. This is a critical dimension for proper alignment.
- Bore (B): The inner diameter of the flange, which must match the pipe’s inner diameter for a smooth flow.
Materials and Manufacturing Standards
ANSI B16.5 Class 150 flanges can be manufactured from a variety of materials to suit different service conditions, including the fluid being transported, pressure, temperature, and corrosion requirements.
Common Material Specifications:
- Carbon Steel: ASTM A105 is a common specification for forged carbon steel components for ambient and higher-temperature service.
- Stainless Steel: ASTM A182 covers forged or rolled alloy and stainless steel pipe flanges, fittings, valves, and parts for high-temperature service .
- Low-Temperature Carbon Steel: ASTM A350 covers forged or rolled carbon and alloy steel flanges for low-temperature service, where notch toughness is important.
Selection and Installation Guidelines
Choosing the correct flange type and ensuring proper installation are crucial for a leak-free and safe piping system.
Selection Criteria:
- Application: Determine the purpose—is it for a permanent connection (Weld Neck), a future disassembly point (Lap Joint), or to close a line (Blind)?
- Service Conditions: Always check the pressure-temperature rating of the flange material for your specific operating conditions. Do not assume 150 psi is always safe.
- Cost vs. Performance: While Slip-On flanges are more cost-effective, Weld Neck flanges offer superior performance in demanding applications.
Installation Best Practices:
- Proper Alignment: Ensure bolt holes are aligned correctly using the bolt circle diameter as a guide.
- Gasket Selection: Choose a gasket material compatible with the service fluid and temperature.
- Bolt Tightening: Follow a cross-bolt tightening pattern to ensure even gasket compression and avoid creating a leak path.
Frequently Asked Questions (FAQs)
1. Is ANSI Class 150 the same as 150 PSI?
No, this is a common misconception. Class 150 is a pressure class designation, not a direct pressure rating. While it is rated for 150 PSI at 100°F, its maximum allowable pressure decreases as the service temperature increases.
2. What is the difference between ANSI B16.5 and ASME B16.5?
There is no technical difference. The standard was originally designated as ANSI B16.5. The committee was later reorganized under ASME, and the standard is now officially titled ASME B16.5. However, the term “ANSI B16.5” is still widely used in the industry.
3. What is the raised face on a Class 150 flange?
Most ASME B16.5 flanges have a 1/16-inch raised face (RF). This small raised surface helps to concentrate pressure on a smaller gasket area, improving the seal. For higher pressure classes like Class 600, the raised face height is typically 1/4 inch.
4. Can I use a Class 150 flange for high-temperature applications?
Yes, but you must de-rate its pressure capacity. You must consult the pressure-temperature rating tables for the specific flange material to determine the maximum allowable pressure at your system’s operating temperature.
5. What standards cover flanges larger than NPS 24″?
For flanges larger than NPS 24″, the governing standard is ASME B16.47, which covers large-diameter steel flanges from NPS 26″ to 60″.
6. Are the dimensions for all flange types (WN, SO, BL) the same for a given NPS and Class?
For key dimensions like Outside Diameter, Bolt Circle, Number of Bolts, and Bolt Hole Diameter, yes, they are standardized. This ensures that, for example, a Class 150 Weld Neck flange can bolt up to a Class 150 Blind flange. However, other dimensions like hub length and bore will differ by type.
7. What materials are commonly used for Class 150 flanges?
Common materials include ASTM A105 for carbon steel, ASTM A182 for various grades of stainless steel (e.g., F304, F316), and ASTM A350 for low-temperature carbon steel applications.
Conclusion
ANSI B16.5 Class 150 flanges are fundamental components in piping systems across countless industries. A thorough understanding of their pressure-temperature relationship, dimensional standards, and the specific advantages of each flange type is essential for designing, maintaining, and operating safe and efficient systems. By selecting the correct flange type and material for your application and adhering to proper installation practices, you can ensure long-term, leak-free performance.
